Zip Blind Models: Vertical, Ceiling & Cassette
Last updated:
Architectural spaces require precise shading velocities. WorldwideTradeX provides specialized Somfy zip-screen models designed for vertical facades,...
Zip blinds are motorised fabric screens for vertical façades, glass roofs and sloped glazing, with model choice shaped by span, mounting position and required tension. The range described here covers vertical screens up to 6.0 m, tensioned ceiling systems up to 5.0 m and compact cassette models, with stated wind classes varying by model. Send the opening dimensions and application to request a quotation.
Table of Contents
- Vertical Zip Screens (Standard Facade)
- Ceiling Zip Systems (Glass Roofs)
- Cassette Win Zip (Compact Luxury)
- Performance Matrix
- Visual Catalog Gallery

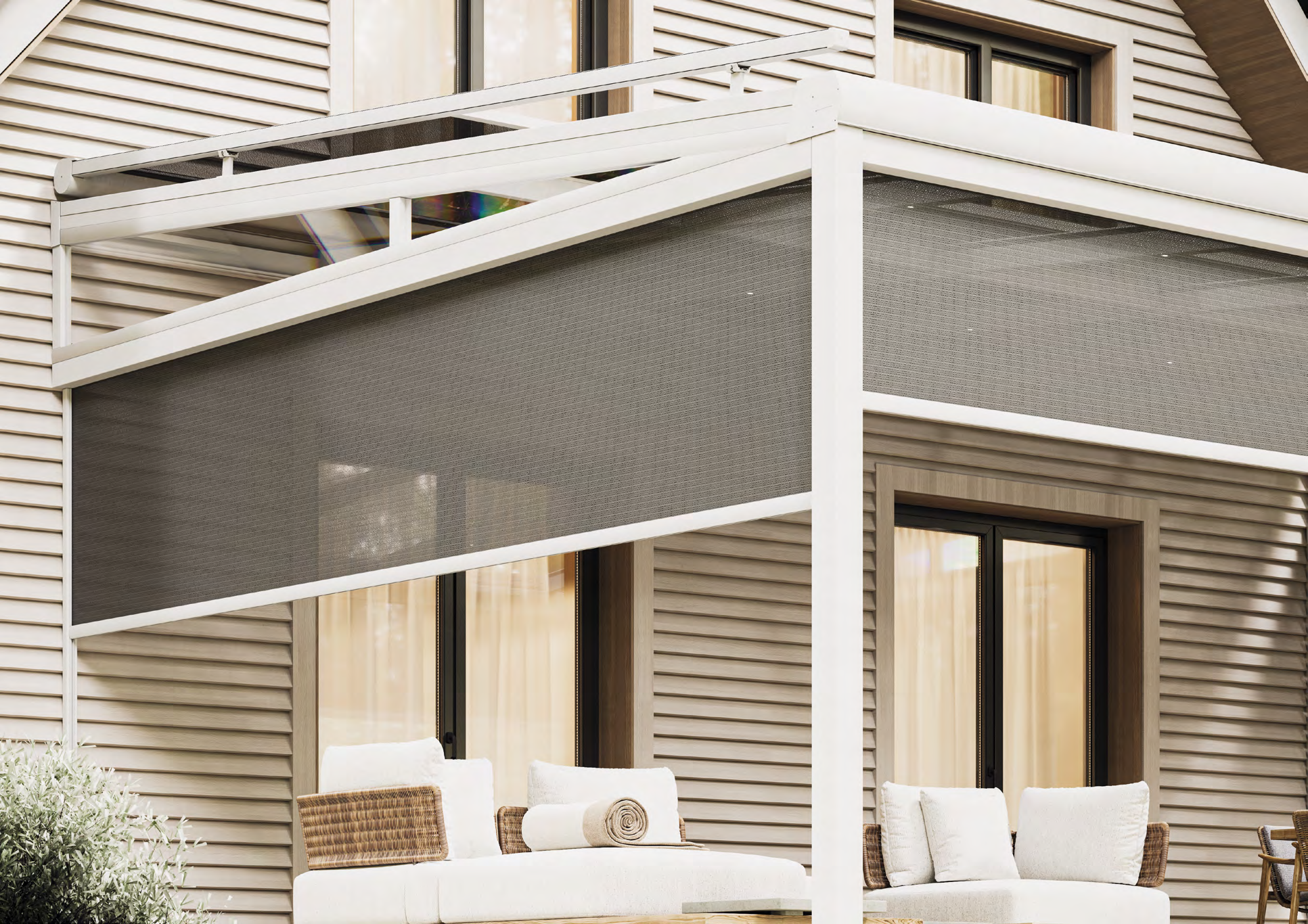

1. Vertical Zip Screens: Facade Protection
The standard for high-wind facades and restaurant patios.
- Width Optimization: Single units up to 600cm with reinforced bottom bars.
- Face-Fix or Reveal-Fix: Versatile mounting compatible with all window profiles.
- Insect Shield: Seamless side-track closure eliminates insect intrusion.

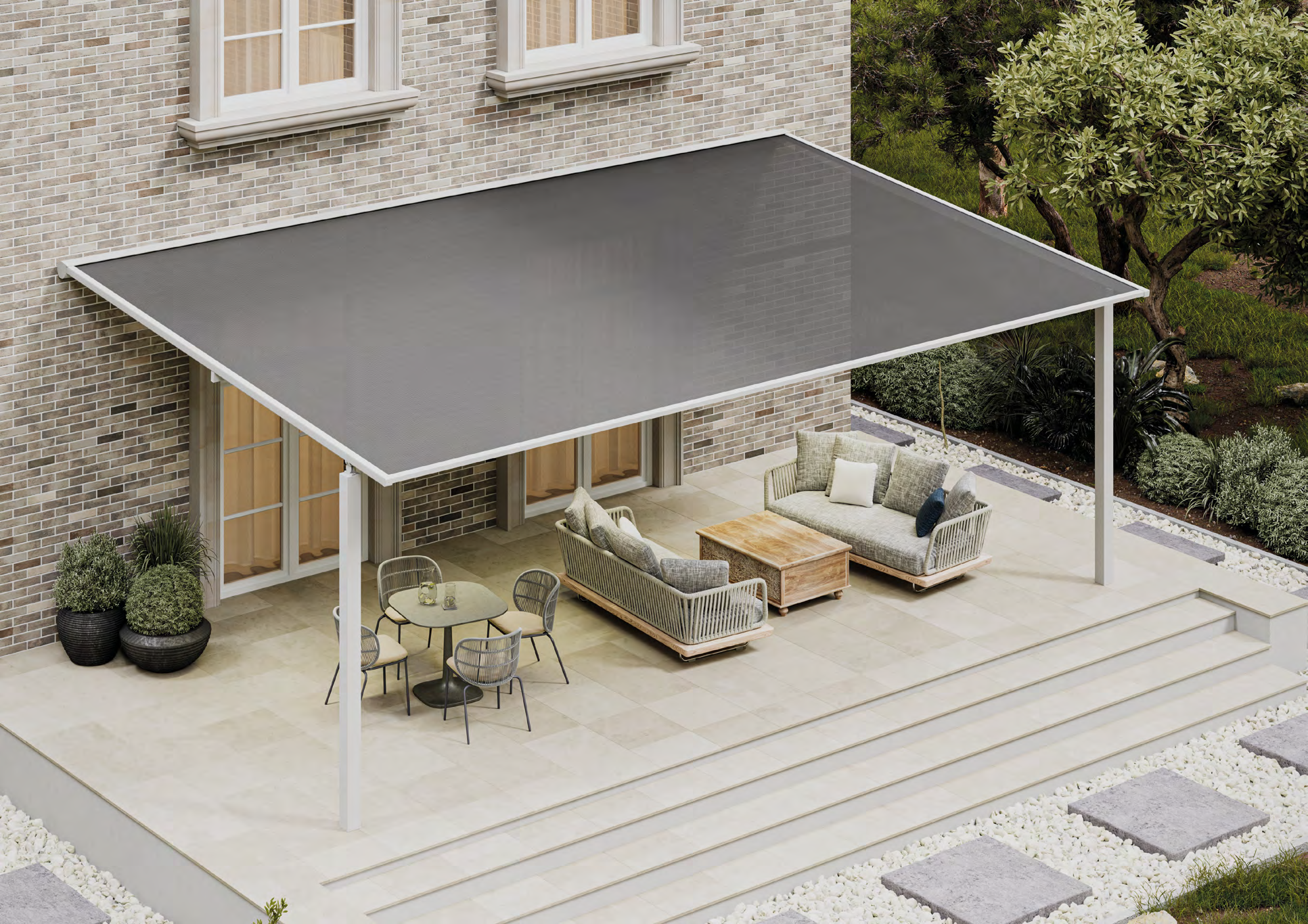

2. Shock-Absorbed Ceiling Zip (Skylights)
Specialized horizontal shading for winter gardens and glass roofs.
- Gas-Pressure Pistons: Integrated tension system ensures 100% fabric flatness at any angle.
3. Cassette Win Zip: Compact Aesthetic
Designed for boutique retail and luxury residential villas.
- Minimalist Headbox: Squared-profile housing for flush architectural integration.
- Aesthetic Focus: Hidden motor and tracking components for a clean finished look.
4. performance Comparison Matrix
| Model Type | Max Span | Wind Class | Primary Use |
|---|---|---|---|
| Vertical Standard | 6.0m | Class 6 | Patio Enclosures |
| Ceiling Tensioned | 5.0m | Class 5 | Glass Skylights |
| Cassette Win | 4.0m | Class 6 | Luxury Boutiques |
5. Design Gallery: Implementation
Our systems are featured in global hospitality projects, from Mediterranean resorts to urban penthouse balconies. Send the opening width, height and mounting position through request a quote and we return the models that fit, with their wind class and cassette size stated.
HoReCa Knowledge Hub
- Zip Blinds: Technical Engineering Details
- Smart Automation: Somfy RTS & IO Integration
- Bioclimatic Pergolas: Louver Systems
Frequently Asked Questions
What are the main zip blind model types available for commercial installations?
Main categories: cassette zip blinds (fabric rolls into a protective housing when open — best for weather protection), open-roll zip blinds (no cassette, more economical, suitable for sheltered locations), and screen zip blinds (solar control fabric for interior use). For outdoor commercial use, cassette models with aluminum housing are the standard.What size limitations apply to zip blind panels?
Standard zip blind panels: maximum width 4.0–6.0m (varies by manufacturer and fabric weight), maximum drop 4.0–6.0m. Larger openings require multiple panels with intermediate guide posts. Motorized systems handle larger sizes more reliably than manual operation. Always verify maximum panel size with the specific system's technical datasheet.How are multiple zip blind panels controlled in a commercial installation?
Multiple panels can be grouped and controlled simultaneously via: Somfy or Nice radio remote (group control), wall-mounted switch panels, building management system (BMS) integration via KNX/BACnet, or smartphone app. Automated group control with sun/wind sensors is standard for large commercial terraces — all panels close automatically when wind exceeds the set threshold.What is the lead time and installation process for commercial zip blind projects?
Standard lead time: 4–8 weeks from order confirmation for custom-manufactured systems. Installation process: structural survey → technical drawing approval → manufacturing → on-site installation (typically 1–2 days per 50m² of coverage). Commissioning includes motor limit setting, group programming, and sensor calibration. Post-installation training for facility staff is recommended.
Related Topics
- Zip Blind Technology: How It Works
- Zip Blind Fabric Selection Guide
- Motorized Zip Blind Systems
- Full Zip Blind Guide
More Frequently Asked Questions
Do you work with hotel chains and project buyers?Yes — we supply hospitality projects, distributors and multi-property programs.
Can systems be customized to site dimensions?
Yes — measure-based manufacturing is standard for ZIP screens, pergolas and many FF&E items.
What about motors and automation?
Somfy and comparable motor/control packages are available; integration scope defined per project.
Do you ship internationally?
Yes — FOB/CIF/DAP worldwide with export packing suited to the product.
How do we get project pricing?
RFQ with drawings, quantities, finishes and destination port.
For project-specific terms, contact WorldwideTradeX via RFQ.
